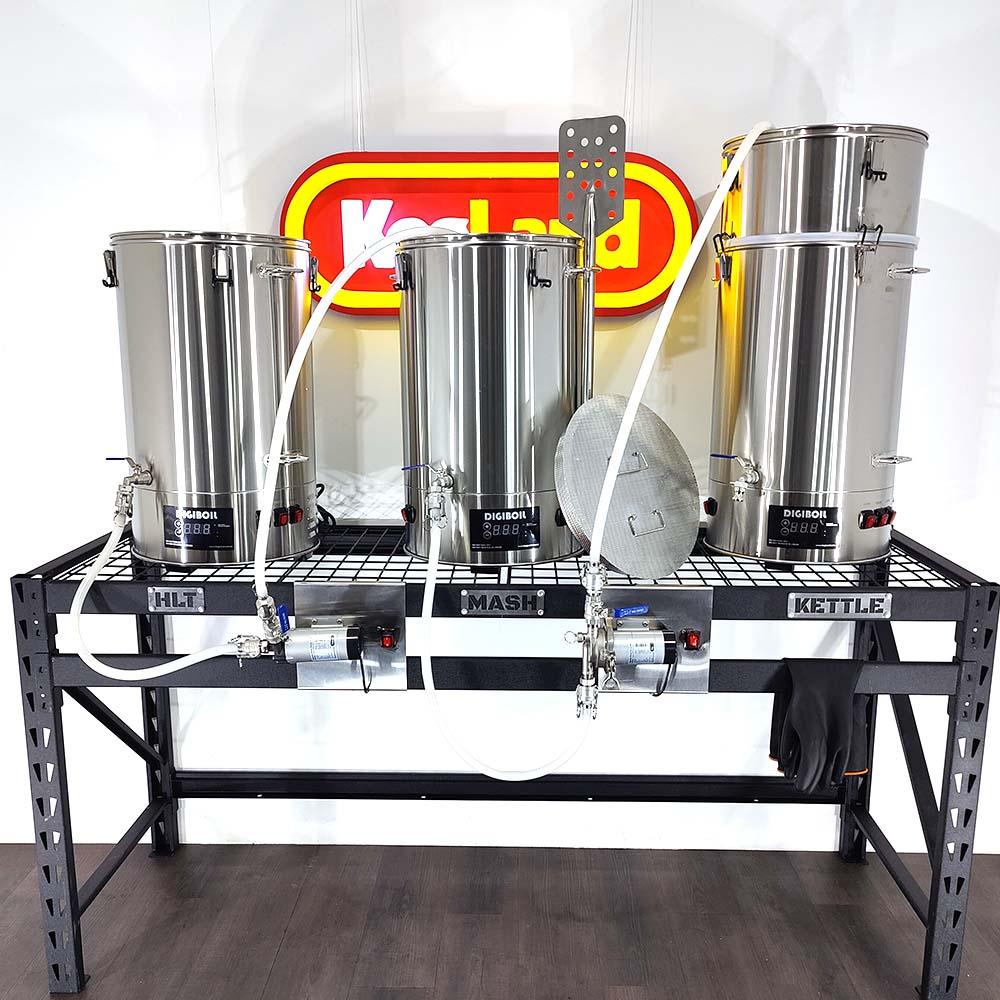

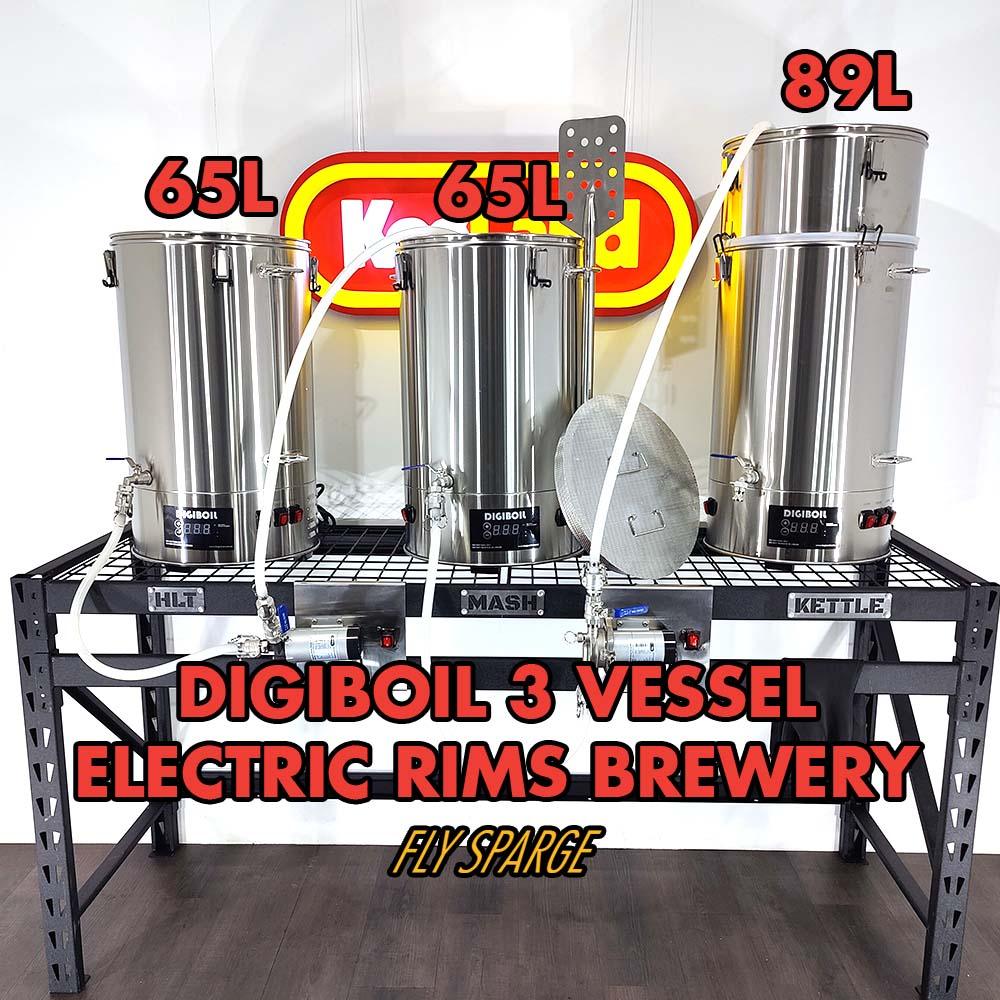

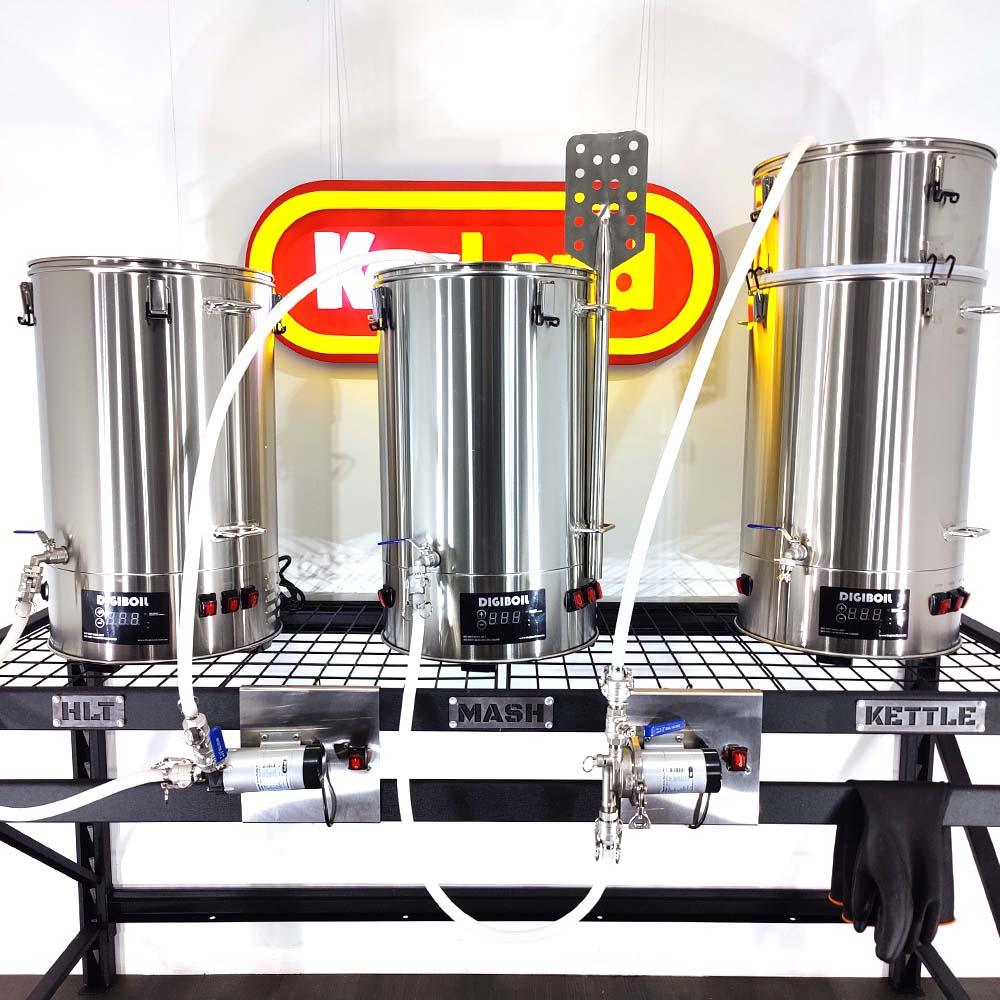

Allstar 65L x 65L x 89L DigiBoil 3 Vessel Brewery (RIMS)

Ever want to brew like the pro's do? On a three vessel system with more control over a single-vessel brewery? Jump on board the 3V and swing on over to the electric side that will be consistent and evenly heated with concealed low watt elements in each vessel. Now made possible with the heavy duty false bottom, you'll be able to mash in directly without the need of a malt pipe or a domed false bottom.

Ever want to brew like the pro's do? On a three vessel system with more control over a single-vessel brewery? Jump on board the 3V and swing on over to the electric side that will be consistent and evenly heated with concealed low watt elements in each vessel. Now made possible with the heavy duty false bottom, you'll be able to mash in directly without the need of a malt pipe or a domed false bottom.

If you have the room and power requirements to run a 3 vessel system, you'll be able to completely adjust the lautering / sparging rate by using the two pumps. This is often called continuous sparging or fly sparging where you are targeting the rate of flow out of the mash tun is the same rate as the hot sparging water going on top.

This kit has been designed around the Bunnings RACK-IT Shelving system. We would advise going the wooden boards and support rails (not the wire shelving) With this abundant racking system in mind, we have also laser cut a metal 25w pump board that you use to mount the pumps. If you are or know an electrician who can rewire the pump to the switch, this would be our recommended way. Otherwise having an extension cord to a plug on the wall that is easily accessible is the least electrically intrusive method.

This system can at a minimum be run on 2 x 15amp outlets, heating the sparge water and strike water at the same time. Then unplugging the HLT when it is at sparging temperature to get ready to start boiling after transfer. We would suggest biting the bullet and getting 3 x 15amp outlets installed to make it much easier.

Whats included:
3 x KL07313 65L DigiBoils (3500w - 15a - 220-240v)
1 x KL22248 65L Boiler Extension (24L Extender) - For Kettle

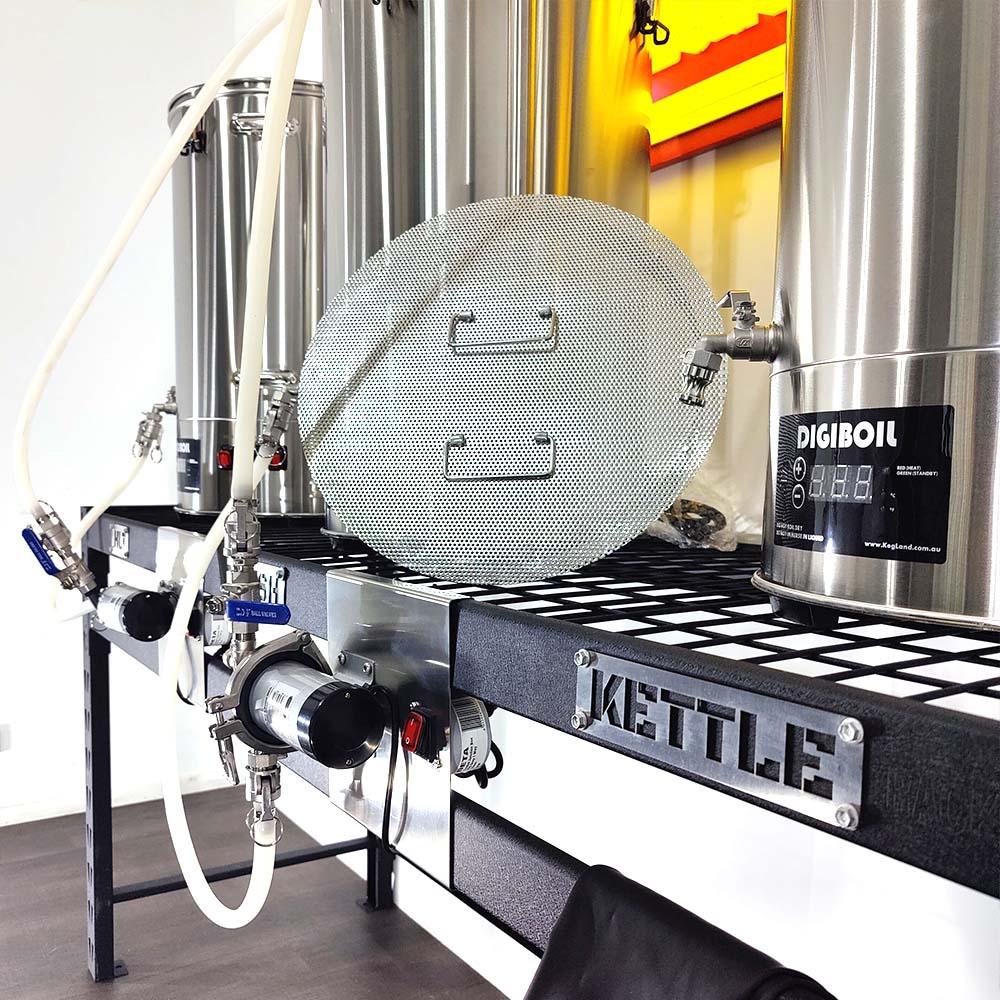

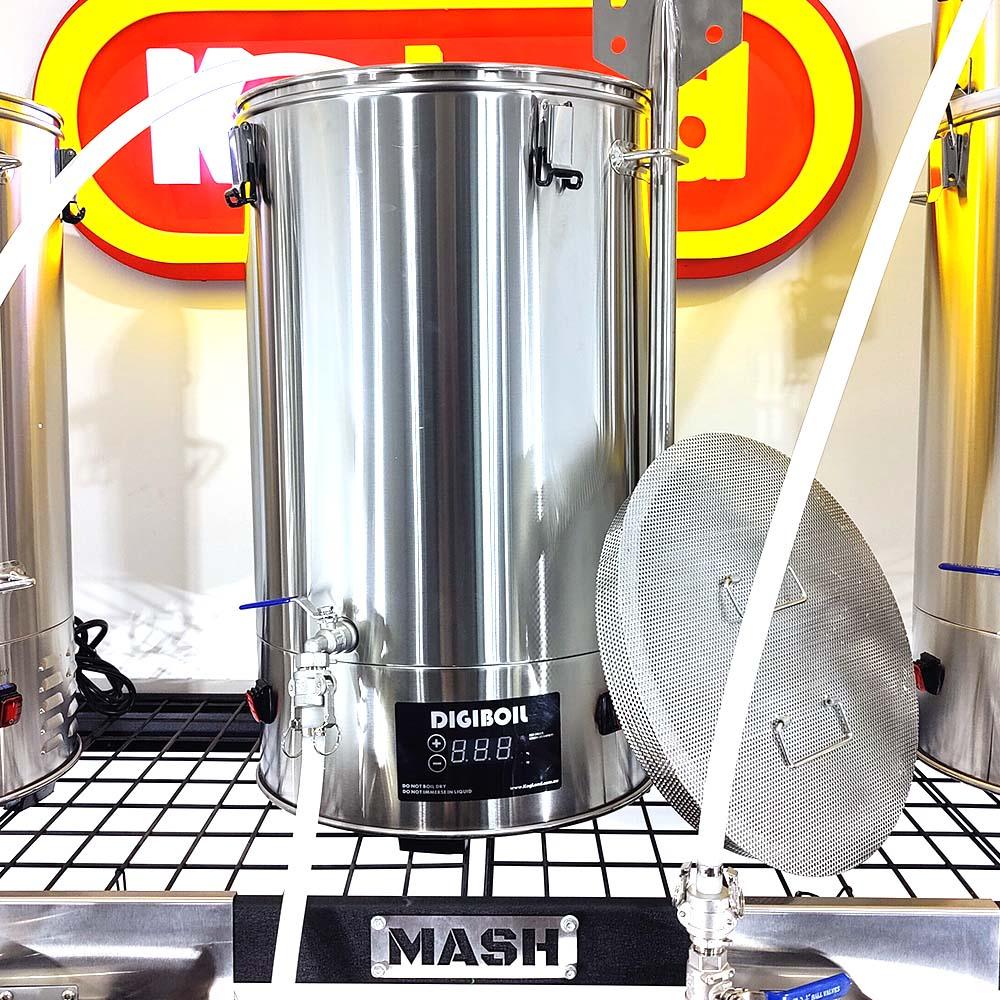

1 x KL27717 65L Heavy Duty False Bottom - For Mash Tun (Suits BrewZilla's and DigiBoils)

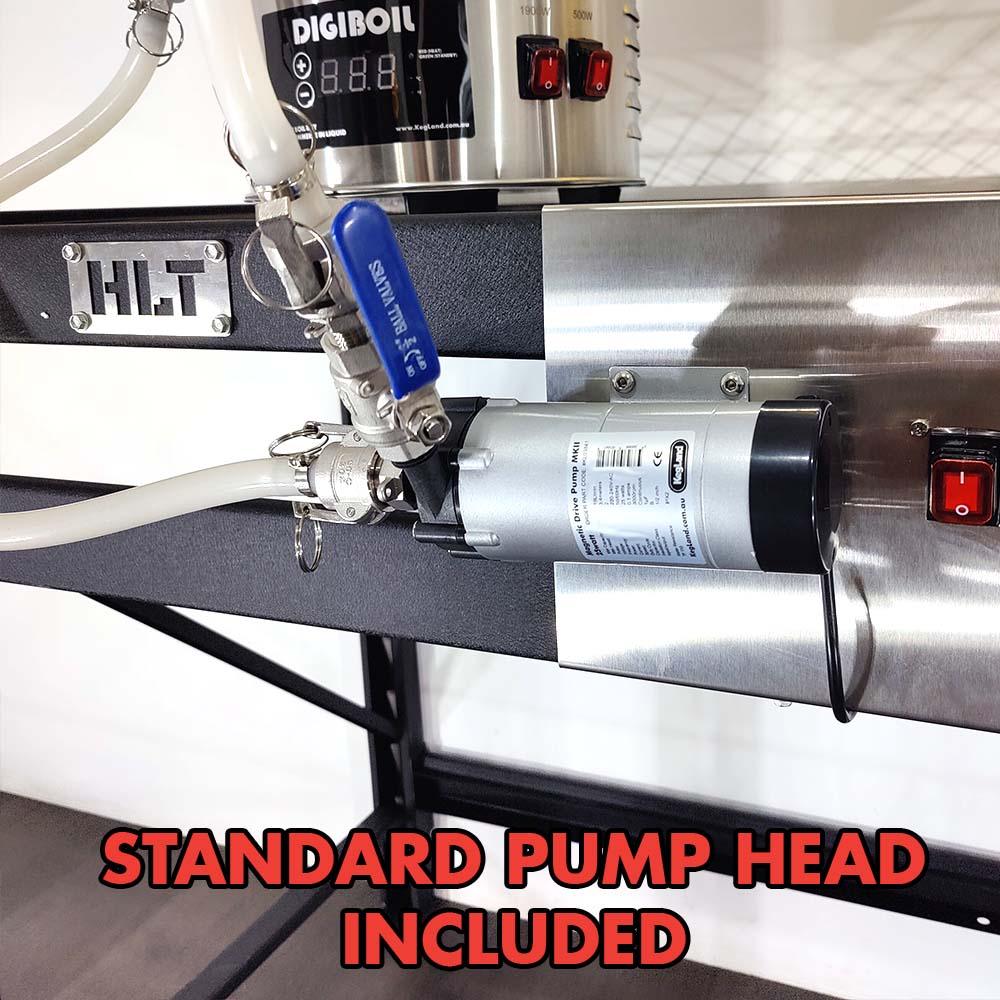

2 x KL03841 25 Watt High Temperature Magentic Drive Pump (220-240v)
2 x KL03681 1/2" Female x 1/2" Female Ball Valve
5 x KL04503 1/2" Type A Camlock - Male Cam x Female BSPP Thread - for DigiBoil spouts and pump inlet of ball valve
2 x KL04510 1/2" Type F Camlock - Male Cam to 1/2" Male - for the pump outlets
6 x KL04497 1/2" Type C Camlock - Female Cam x 13mm Barb - For silicone hosing
1 x KL10888 100% PTFE Plumbers Tape
1 x KL06736 Bag of 20 x 20.5mm Stainless Steel Stepless Clamps
1 x KL06873 6m Roll of Heavy Duty Silicone Hosing
1 x KL05289 Heavy Duty Brewing Gloves - FREE for retail customers only.
1 x KL03797 Stainless Steel Mash Paddle (Heavy Duty) FREE for retail customers only.
2 x KL24617 Laser Cut 25w Pump Hangers FREE for retail customers only.
2 x KL05968 30a Illuminated Rocker Switch FREE for retail customers only.

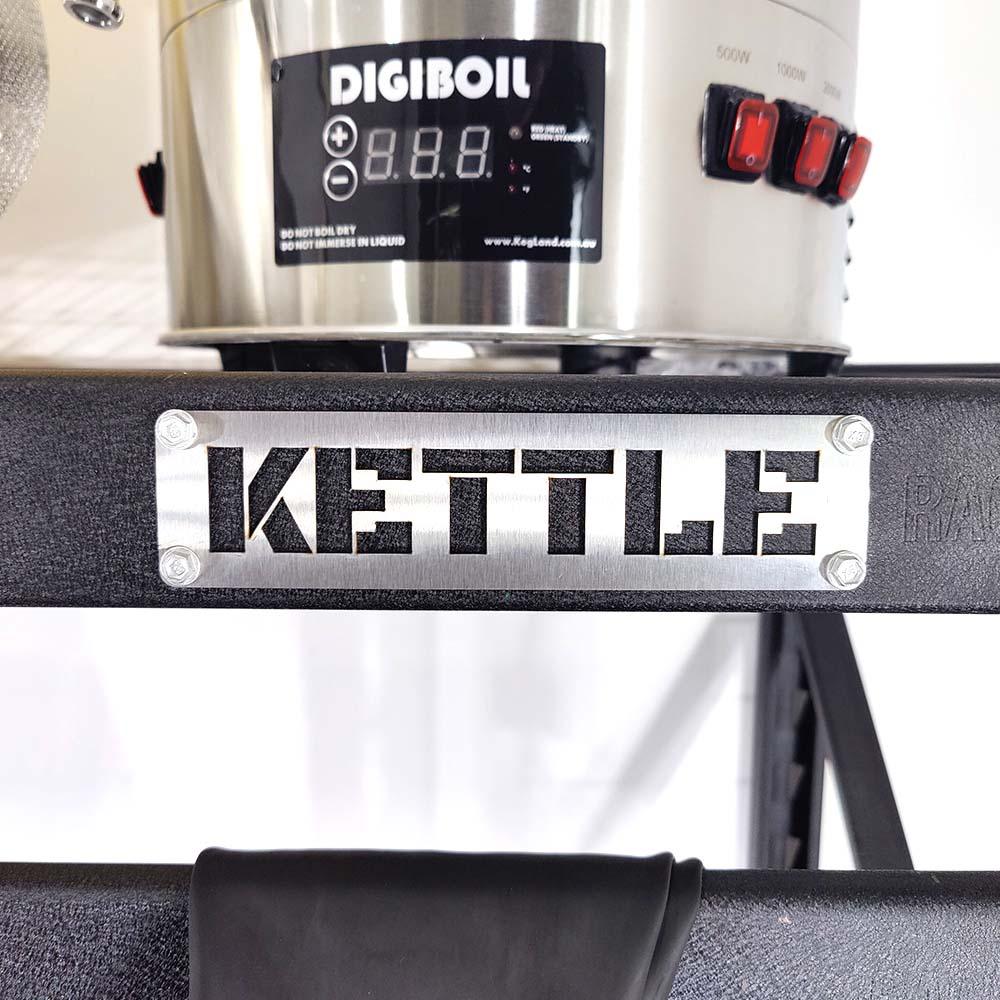

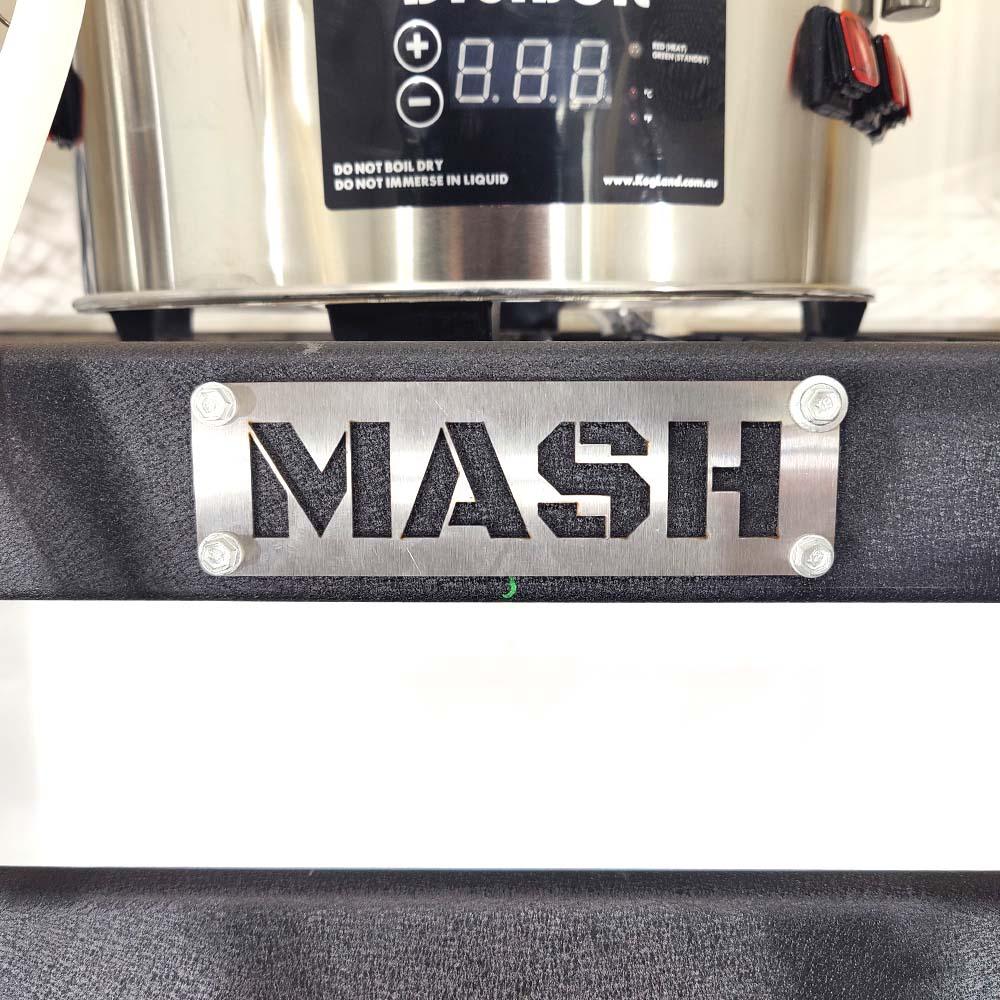

1 x KL24600 Laser Cut Badges - HLT ~ MASH ~ KETTLE FREE for retail customers only.

Optional upgrade:

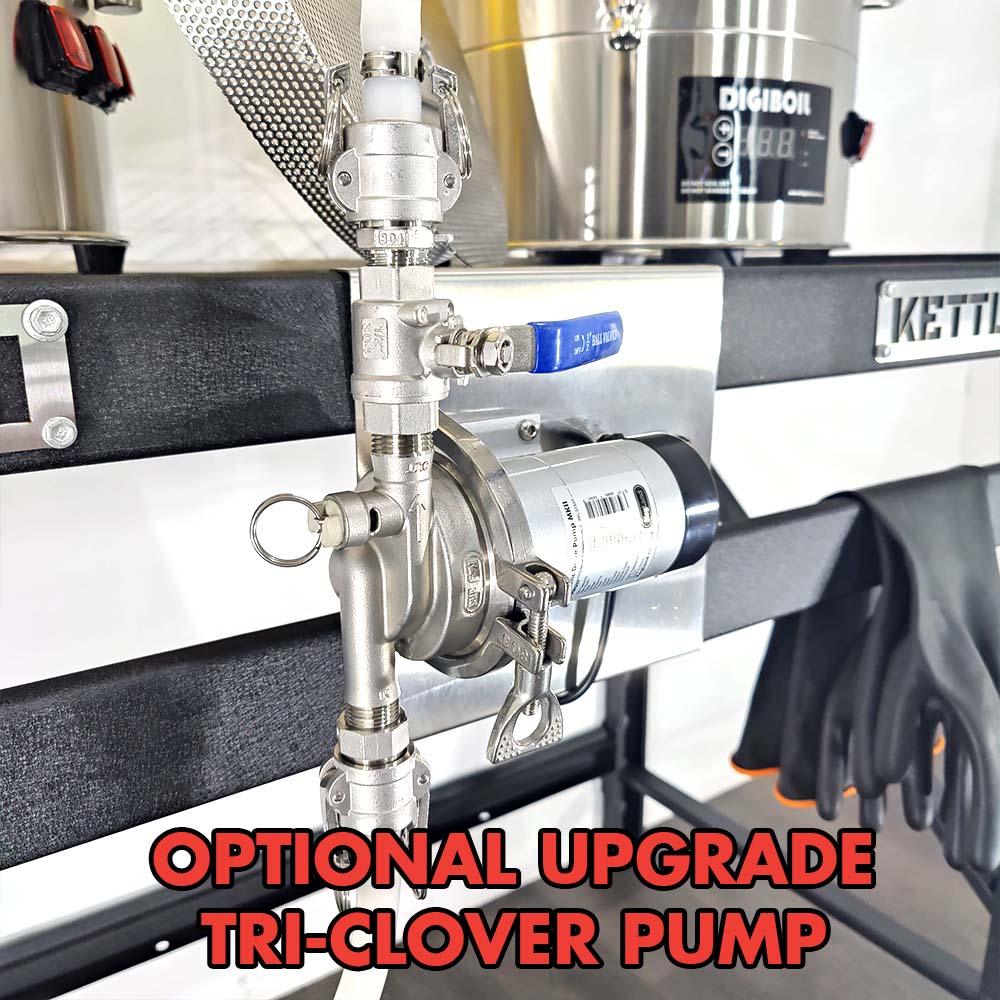

2 x Stainless Steel 3" Tri-Clover 25w Pump Heads -KegLand Staff Favourite*
Or 2 x Stainless Steel 25w Pump Heads.
