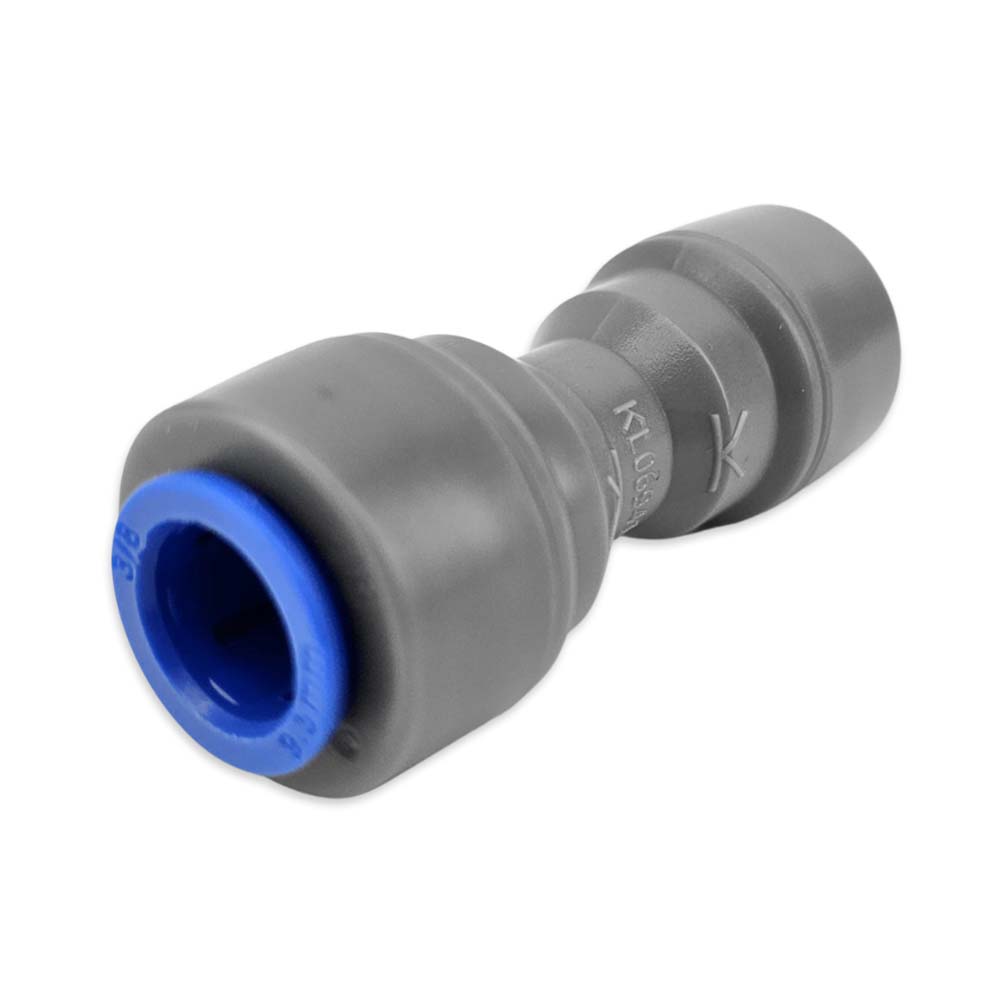

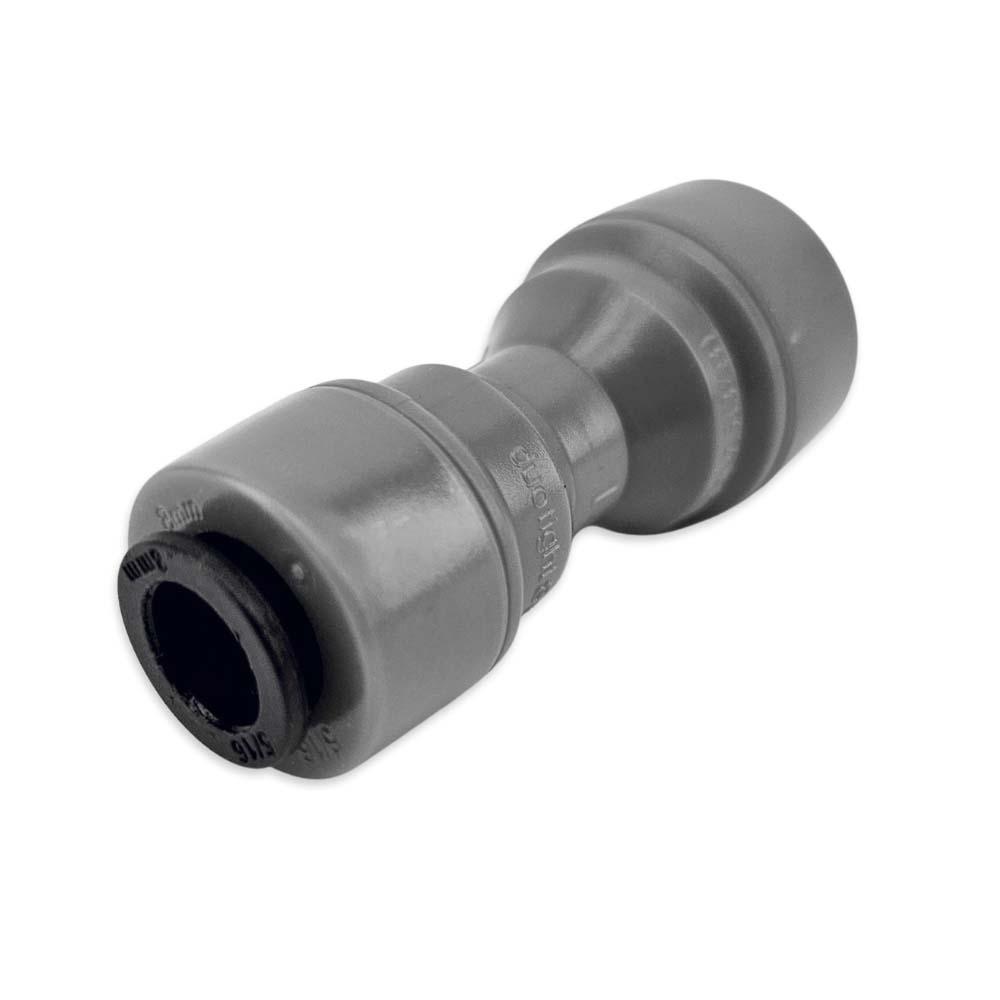

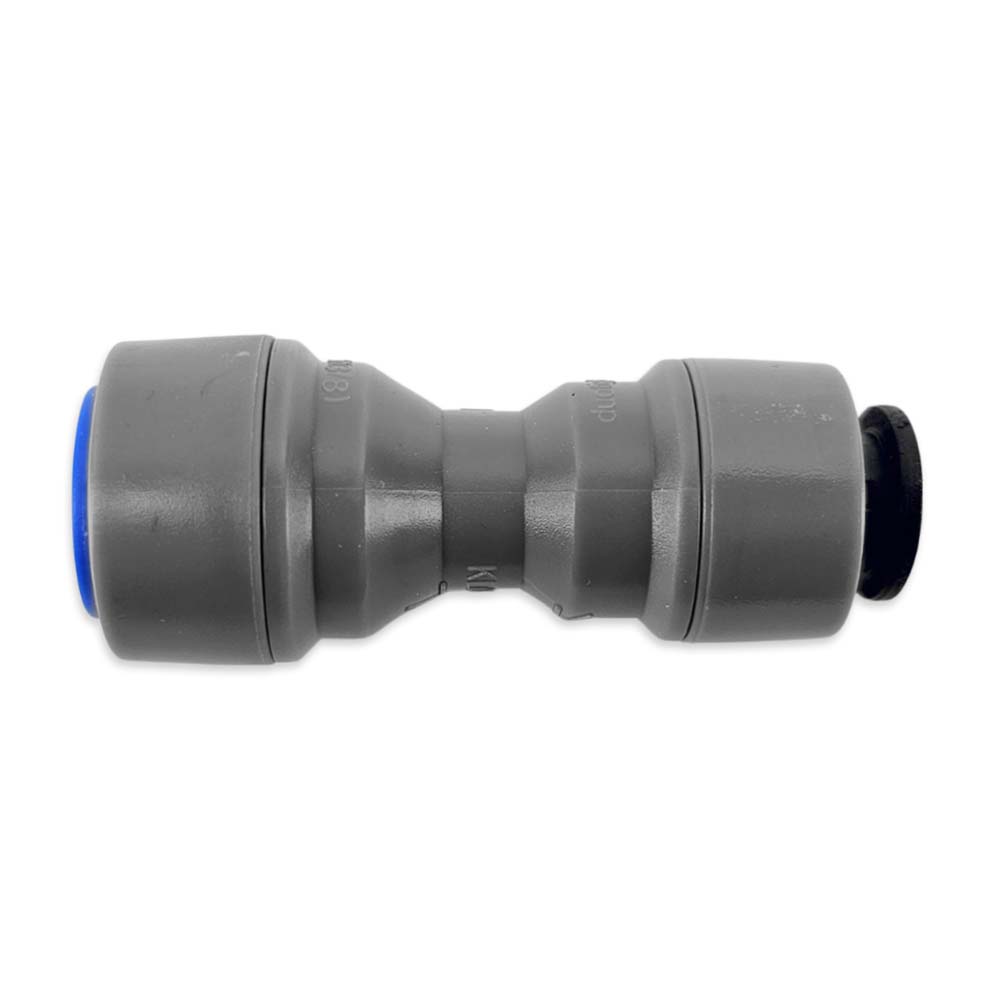

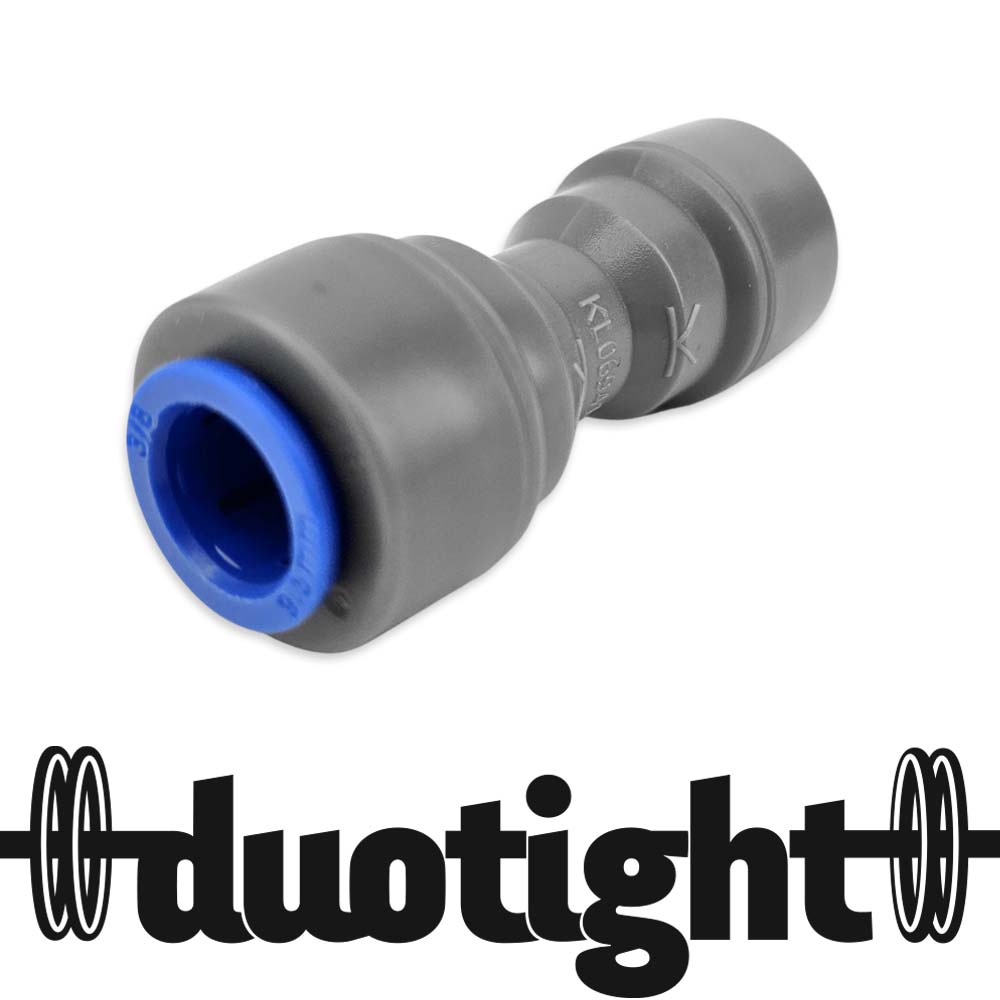

duotight - 8mm (5/16”) Female x 9.5mm (3/8”) Female Reducer

This particular fitting is designed to reduce or drop down line size from a 9.5mm (3/8") outer diameter to an 8mm (1/4") outer diameter. It provides a reliable, seamless transition between different tubing sizes or rigid fittings without requiring complex adaptations or additional clamps.

It is highly useful across a variety of homebrewing and draft setup applications, including connecting to Carbonation caps, Short Shanks, and Bottling Guns.

Applications & Compatibility

• Line to line: Drop down line size from 9.5mm to 8mm, or increase it from 8mm to 9.5mm.

• Line to barb: Connect 9.5mm line to certain pressure gauges or Quick Swivel barbs

8mm Tubing Compatibility

This 8mm duotight fitting is optimised for use with EVABarrier Dual Barrier Line. It is compatible with:

• KL06224: 4mm ID x 8mm OD | 12m
• KL06231: 5mm ID x 8mm OD | 12m
• KL42741: 5mm ID x 8mm OD | 12m (Red)
• KL42765: 4mm ID x 8mm OD | 12m (Black Lightshield)

9.5mm Tubing Compatibility

This 9.5mm duotight fitting is optimised for use with EVABarrier Dual Barrier Line. It is compatible with:

• KL06248: 6.3mm ID x 9.5mm OD | 12m
• KL42772: 6.3mm ID x 9.5mm OD | 12m (Black Lightshield)

The duotight Generation 2 Difference

Why settle for standard push-in fittings? duotight Generation 2 represents a massive leap in engineering over traditional acetal fittings.

Dual-Material Double O-Ring Design

The secret to our superior seal is a two-stage system using two different high-quality materials:

1. EPDM O-Ring: Provides exceptional chemical and gas resistance.
2. Silicone O-Ring: Maintains its shape and elasticity in sub-zero temperatures.

High-Performance Materials (POK)

Instead of standard Acetal, Generation 2 fittings are made from Polyketone (POK).

• Higher Chemical Resistance: Withstands harsh brewery cleaners.
• UV Protection: Won't become brittle over time.
• Extreme Durability: Rated for over 300psi @ 25°C.

User-Friendly Features

• Color-Coded Collets: Green denotes 6.35mm (1/4"). Black denotes 8mm (5/8").
• Depth Indicators: Includes >| |< indicators so you know the hose is fully seated.
• No Clamps Necessary: Simply push to seal; push the collet to release.

We recommend using a Tube Cutter to ensure a perfectly straight, burr-free cut. An angled cut is the #1 cause of leaks in push-fit systems.
