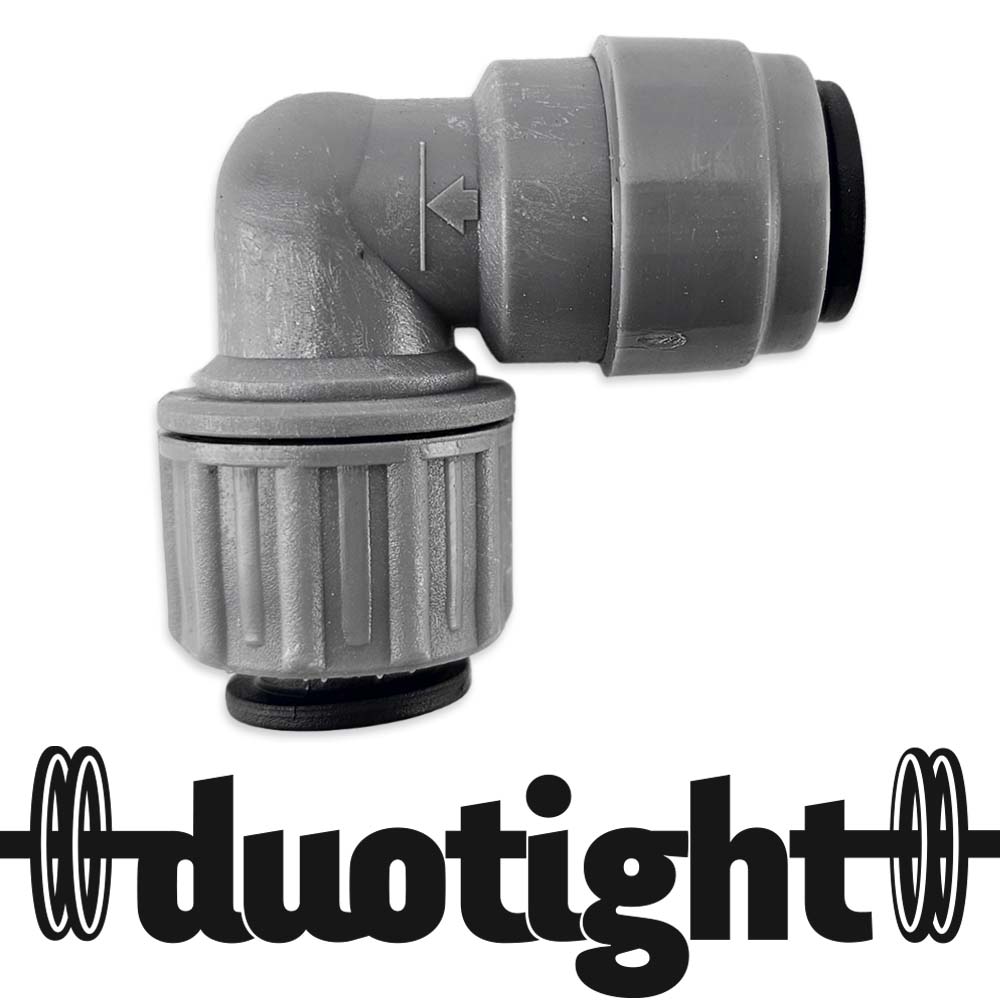

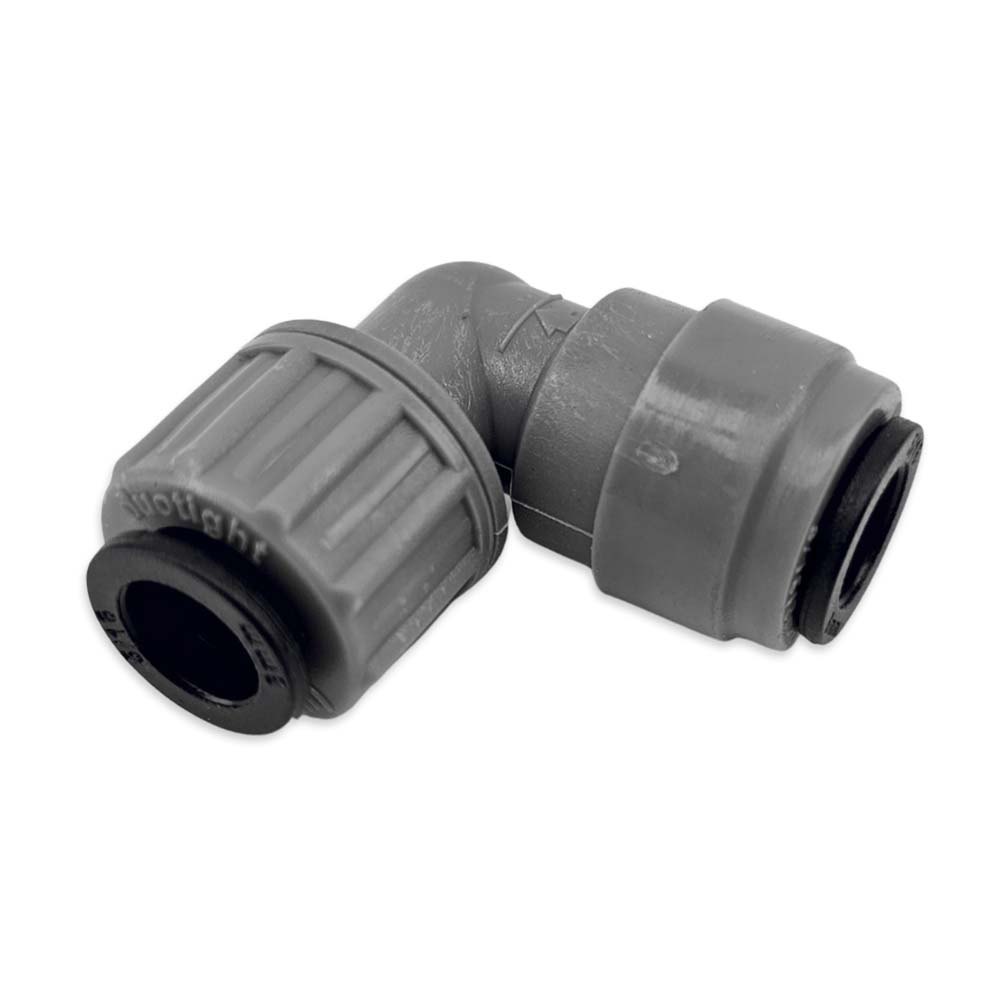

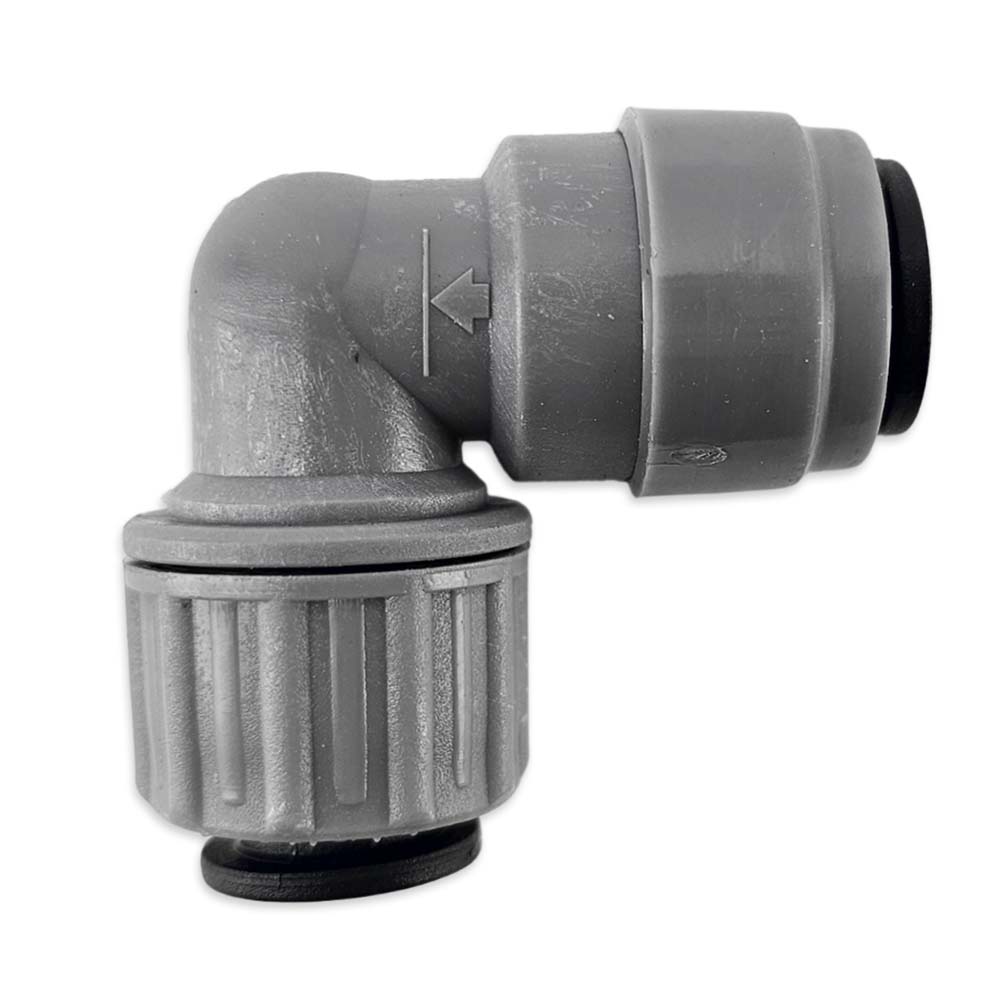

duotight - 8mm (5/16) Screwlock x 8mm (5/16) Elbow

This fitting is a push-in style fitting designed for quick and tool-free setup, allowing you to simply push the line firmly in from both sides until it seats. It is mainly used where a stronger, high-pressure, or leak-resistant connection is required on a rigid port, preventing accidental dislodgement under vibration or pressure spikes.

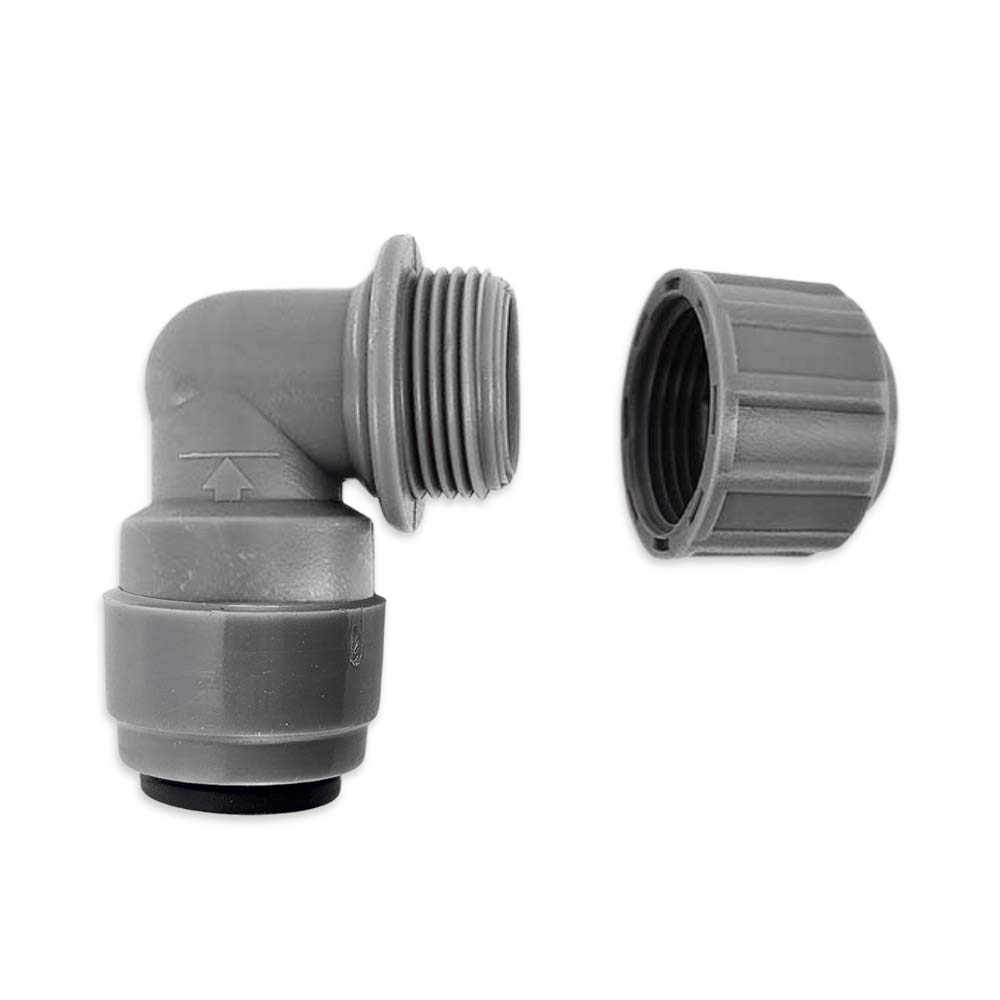

One side features a standard 8mm (5/16") duotight push-in fitting, utilizing dual EPDM O-rings for optimal sealing. The other side is a compression-adapted duotight featuring a Screw Lock collar, which allows you to hand-tighten the fitting around rigid tubing to create an extra secure mechanical grip.

It can be used on any 8mm OD rigid or semi-rigid tubing, including EVABarrier, stainless steel, or copper. For example, it secures perfectly onto the 8mm stainless steel lines on a G40.1 Glycol Chiller to ensure glycol lines remain leak-free under continuous pump pressure.

It is also ideal for mounting directly onto an oxygenation wand / carbonation wand, providing a robust connection point that withstands frequent handling during aeration or carbonation procedures.

For installation, ensure your tubing is cut clean and square using a dedicated tube cutter rather than scissors, as a straight cut ensures a proper seal against the internal O-rings. When attaching the Screw Lock side, push the tube fully into the fitting before tightening the locking collar down by hand.

This fitting line also includes a 1/4" (6.35mm) reducer option down to an 8mm Screwlock for tight spaces or transitioning between different hose sizes:

KL24624 - duotight - 6.35mm (1/4) Screwlock x 8mm (5/16) - Reducer Elbow

Applications & Compatibility

• G40.1: Attach directly to the stainless steel lines.

• Oxygenation/carbonation wand: Attach the screwlock to the end of the wand.
• Line to line: Join two 8mm OD lines together, secure in the knowledge that they are, in fact, secure.


8mm Tubing Compatibility

This 8mm duotight fitting is optimised for use with EVABarrier Dual Barrier Line. It is compatible with:

• KL06224: 4mm ID x 8mm OD | 12m
• KL06231: 5mm ID x 8mm OD | 12m
• KL42741: 5mm ID x 8mm OD | 12m (Red)
• KL42765: 4mm ID x 8mm OD | 12m (Black Lightshield)

The duotight Generation 2 Difference

Why settle for standard push-in fittings? duotight Generation 2 represents a massive leap in engineering over traditional acetal fittings.

Dual-Material Double O-Ring Design

The secret to our superior seal is a two-stage system using two different high-quality materials:

1. EPDM O-Ring: Provides exceptional chemical and gas resistance.
2. Silicone O-Ring: Maintains its shape and elasticity in sub-zero temperatures.

High-Performance Materials (POK)

Instead of standard Acetal, Generation 2 fittings are made from Polyketone (POK).

• Higher Chemical Resistance: Withstands harsh brewery cleaners.
• UV Protection: Won't become brittle over time.
• Extreme Durability: Rated for over 300psi @ 25°C.

User-Friendly Features

• Color-Coded Collets: Black denotes 8mm (5/16").
• Depth Indicators: Includes >| |< indicators so you know the hose is fully seated.
• No Clamps Necessary: Simply push to seal; push the collet to release.

We recommend using a Tube Cutter to ensure a perfectly straight, burr-free cut. An angled cut is the #1 cause of leaks in push-fit systems.
