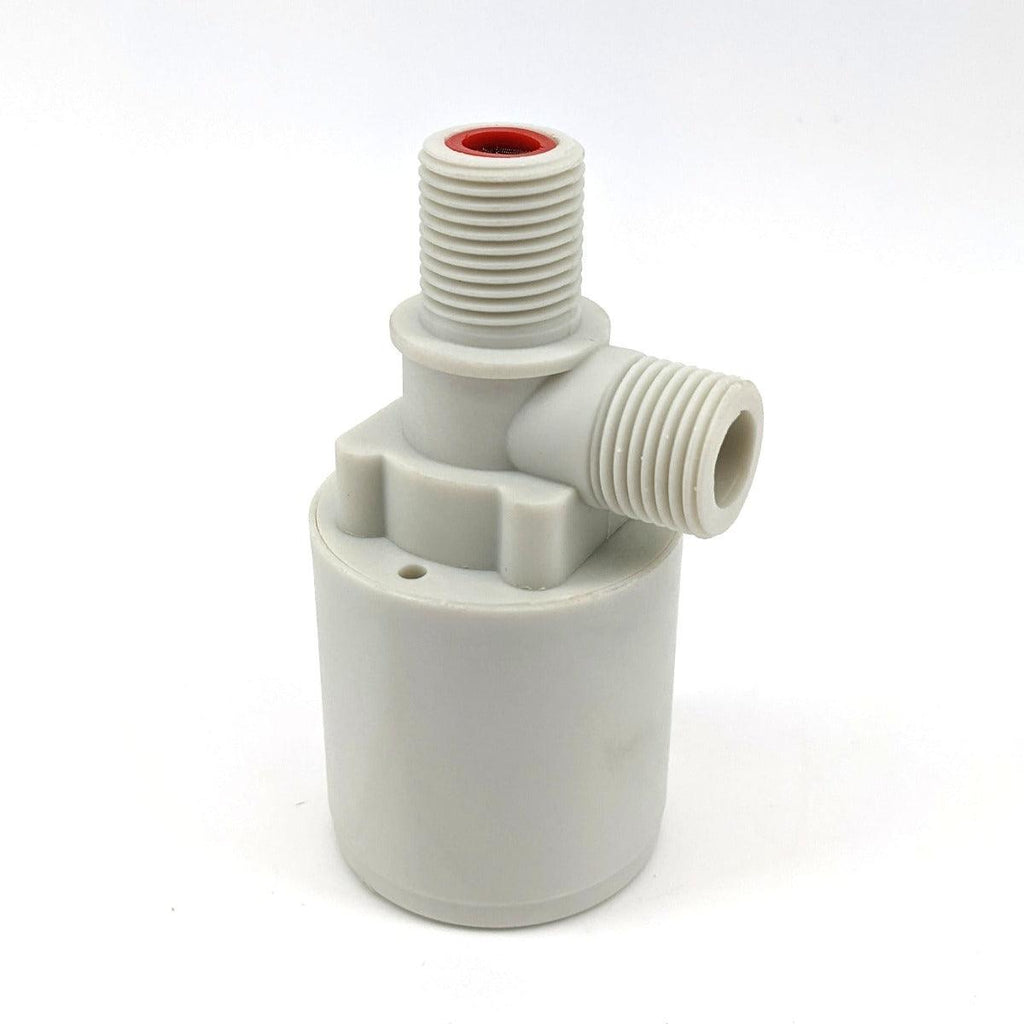

Hydraulic Float Ball Valve 1/2

This valve is the replacement of the traditional float ballcock, which can be applied to various systems of high water tanks, pools, hydroponics, water carbonators etc. The integrated float is inside the housing so it's less likely to get fowled up by other stuff getting caught up in the float.

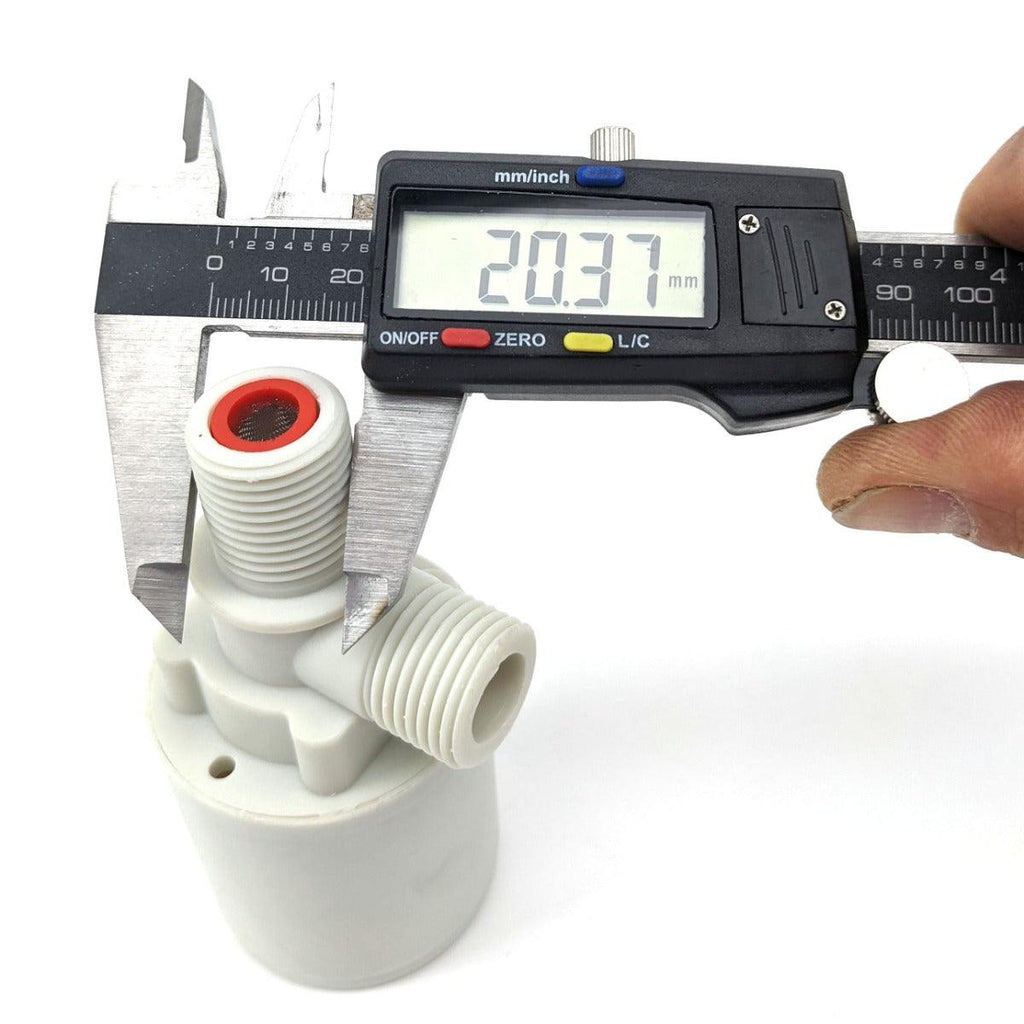

This is a passive device making it inherently reliable and requires no electricity. Simply hook up to your water supply and the water level will be automatically maintained. The common (BSPP)1/2" threads make it easy to find other fittings that will work with this device.

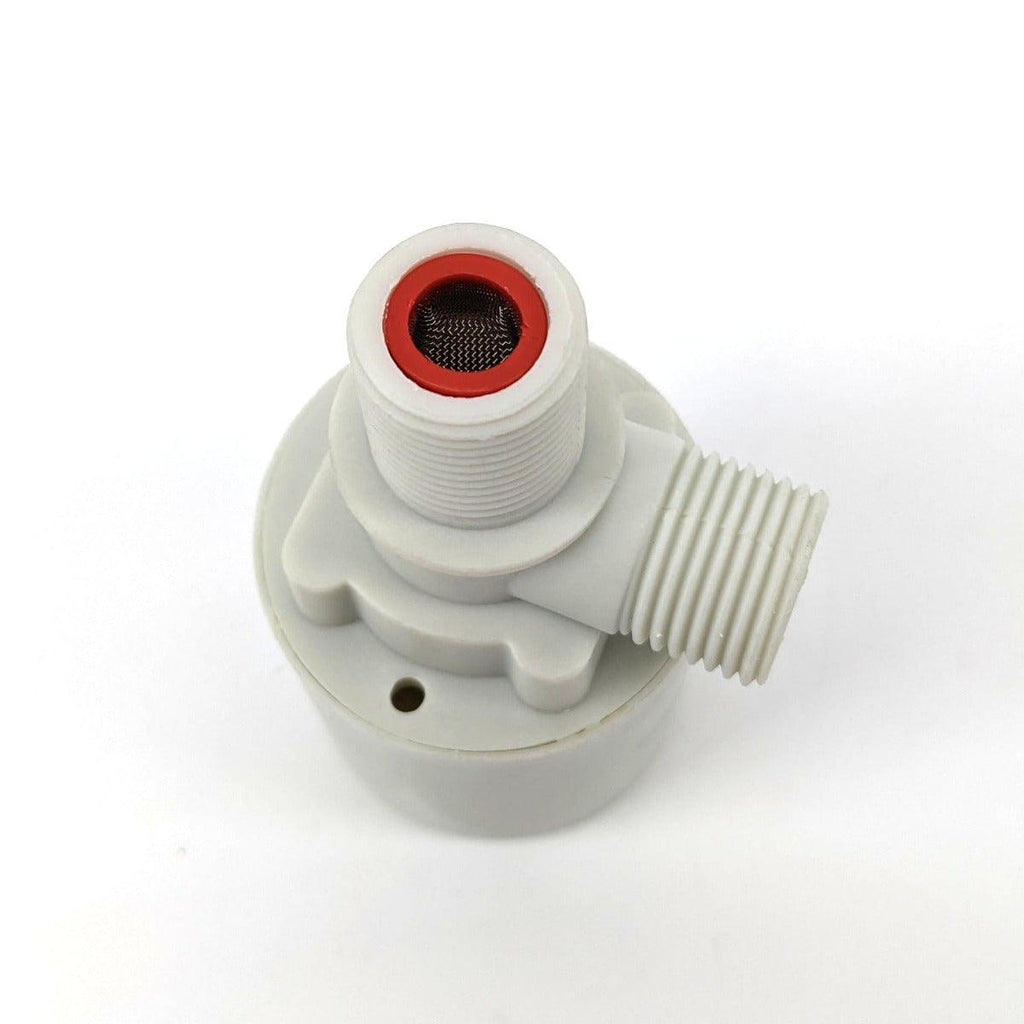

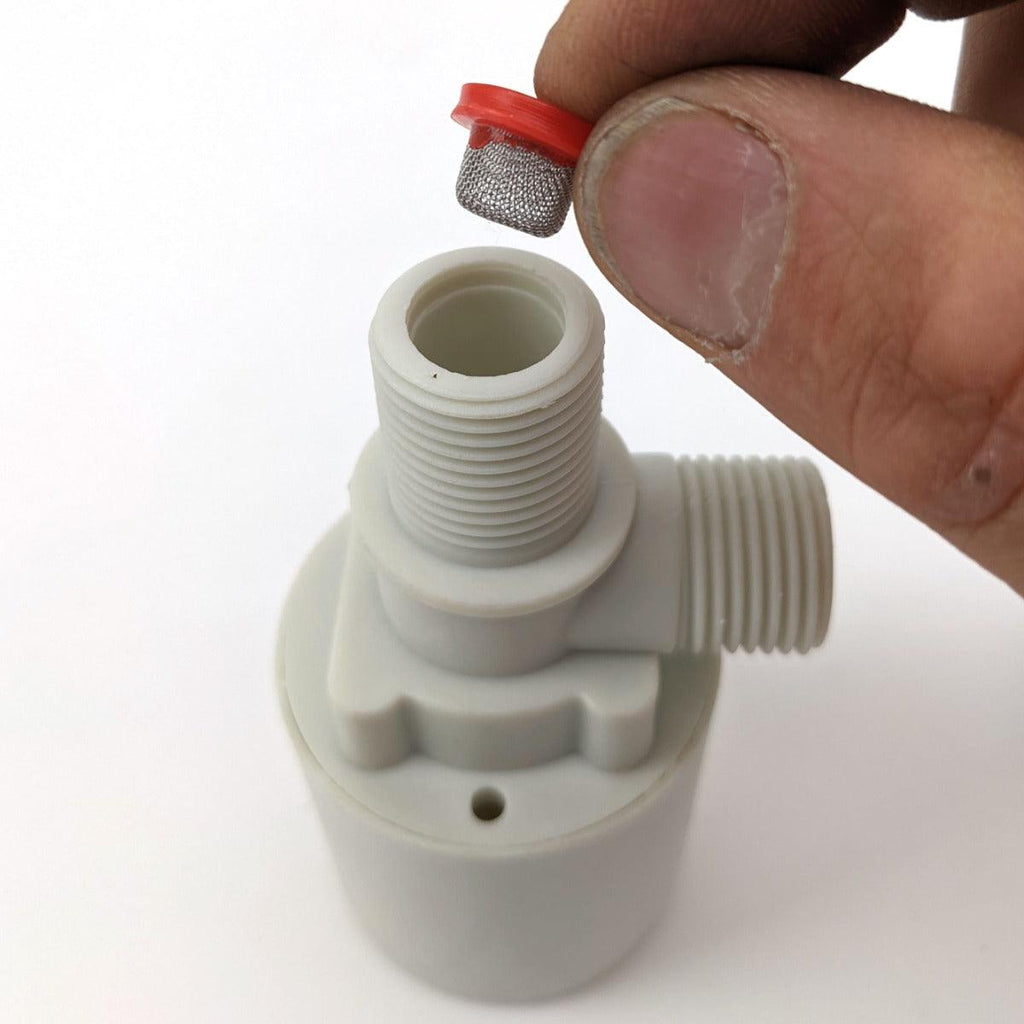

This device also comes with an integrated stainless mesh filter screen on the input side to prevent particulates blocking the valve.

Working pressure range: 1bar to 10bar (0.1-1MPa) (14psi - 145psi)
Made from: Food Grade glass reinforced Nylon (PA66)
Working temperature: ≤70°
Resistance to high temperature (but this will reduce the pressure rating): 70°~120°

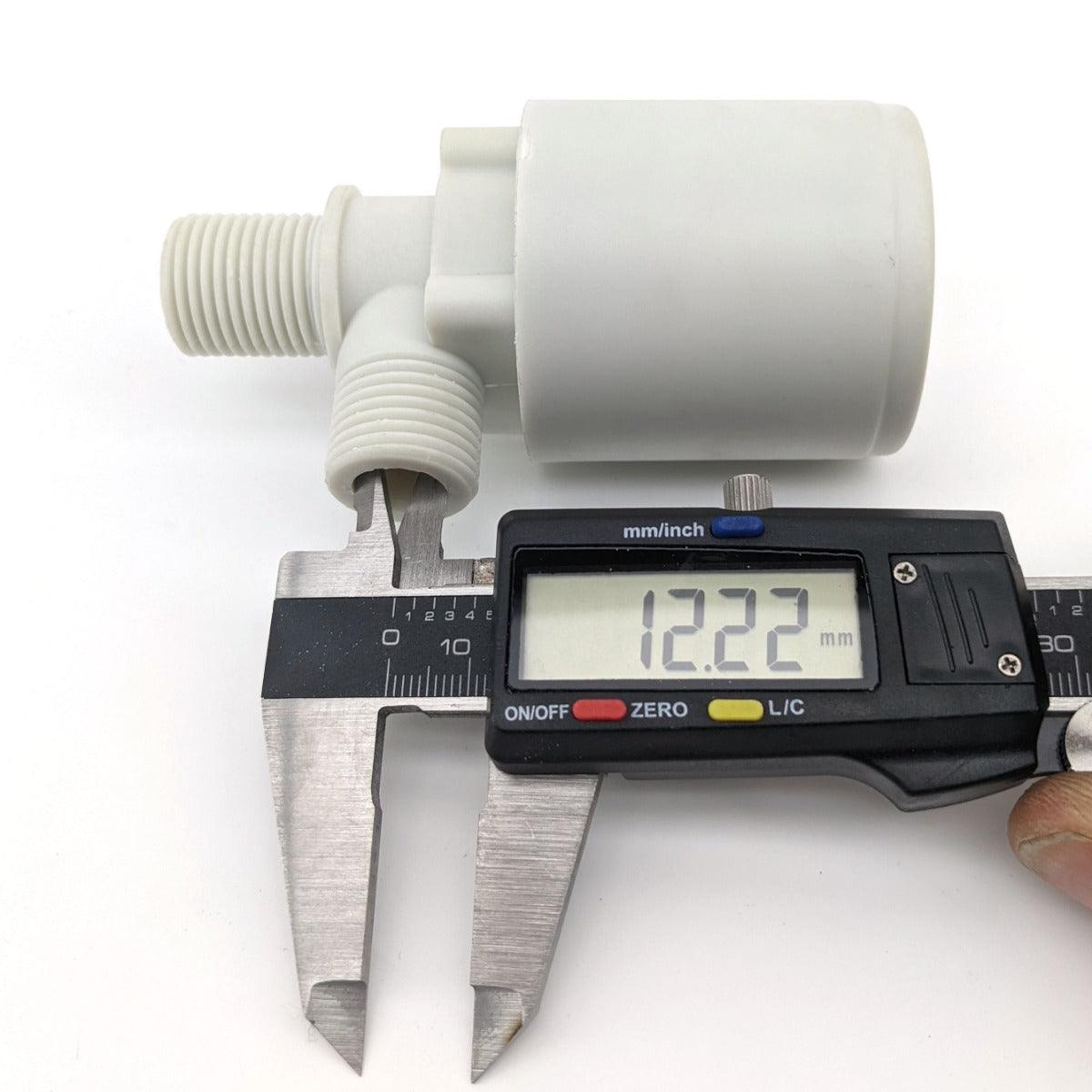

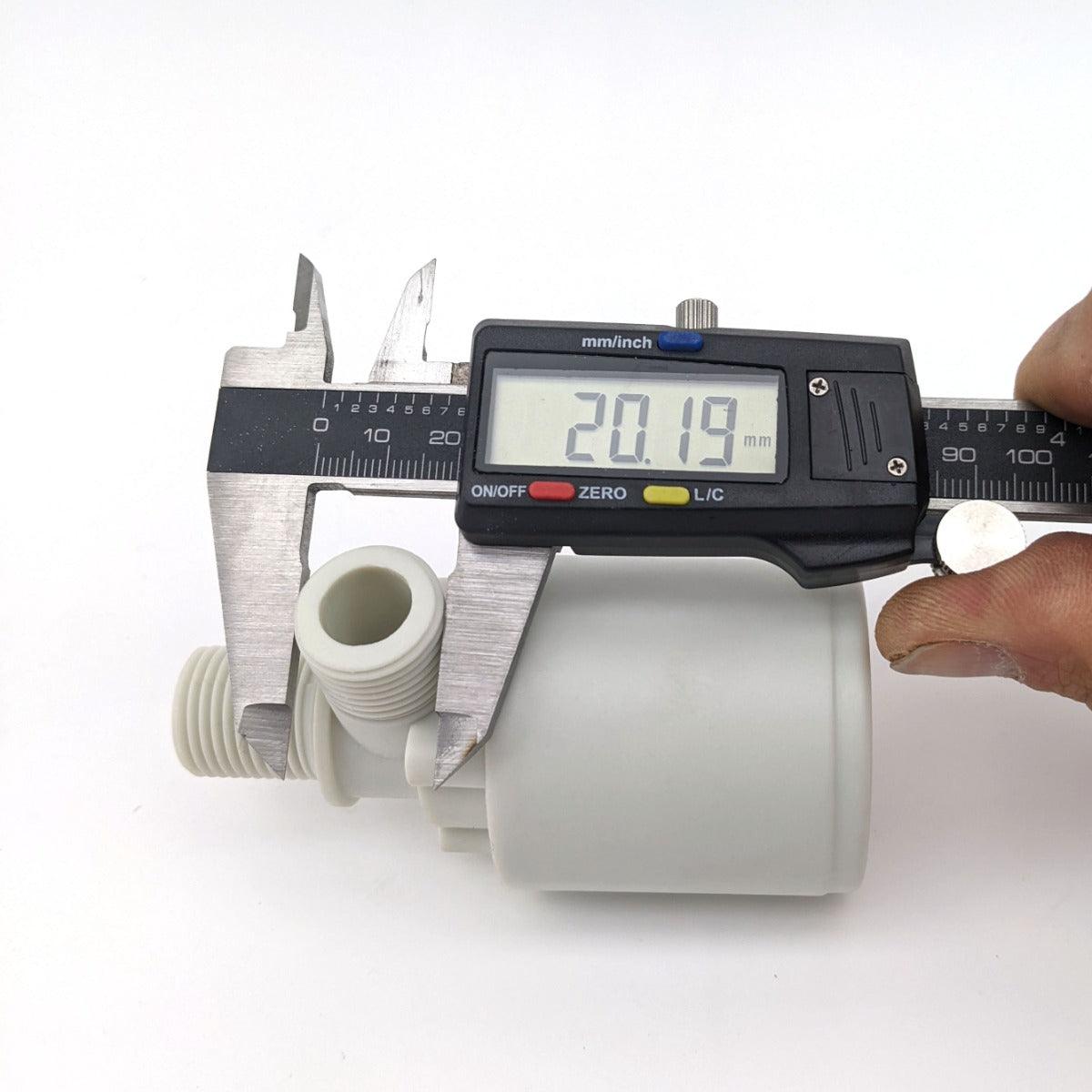

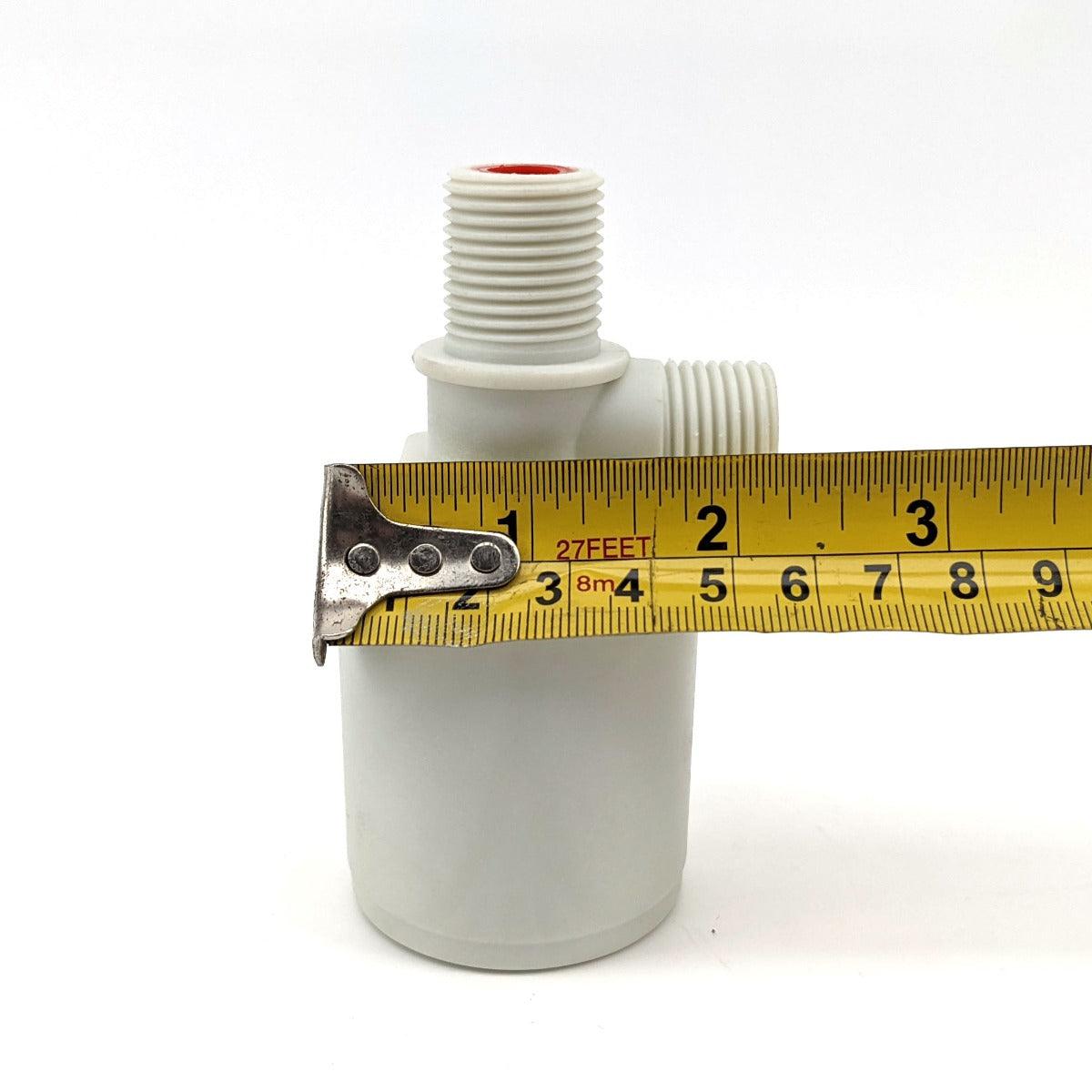

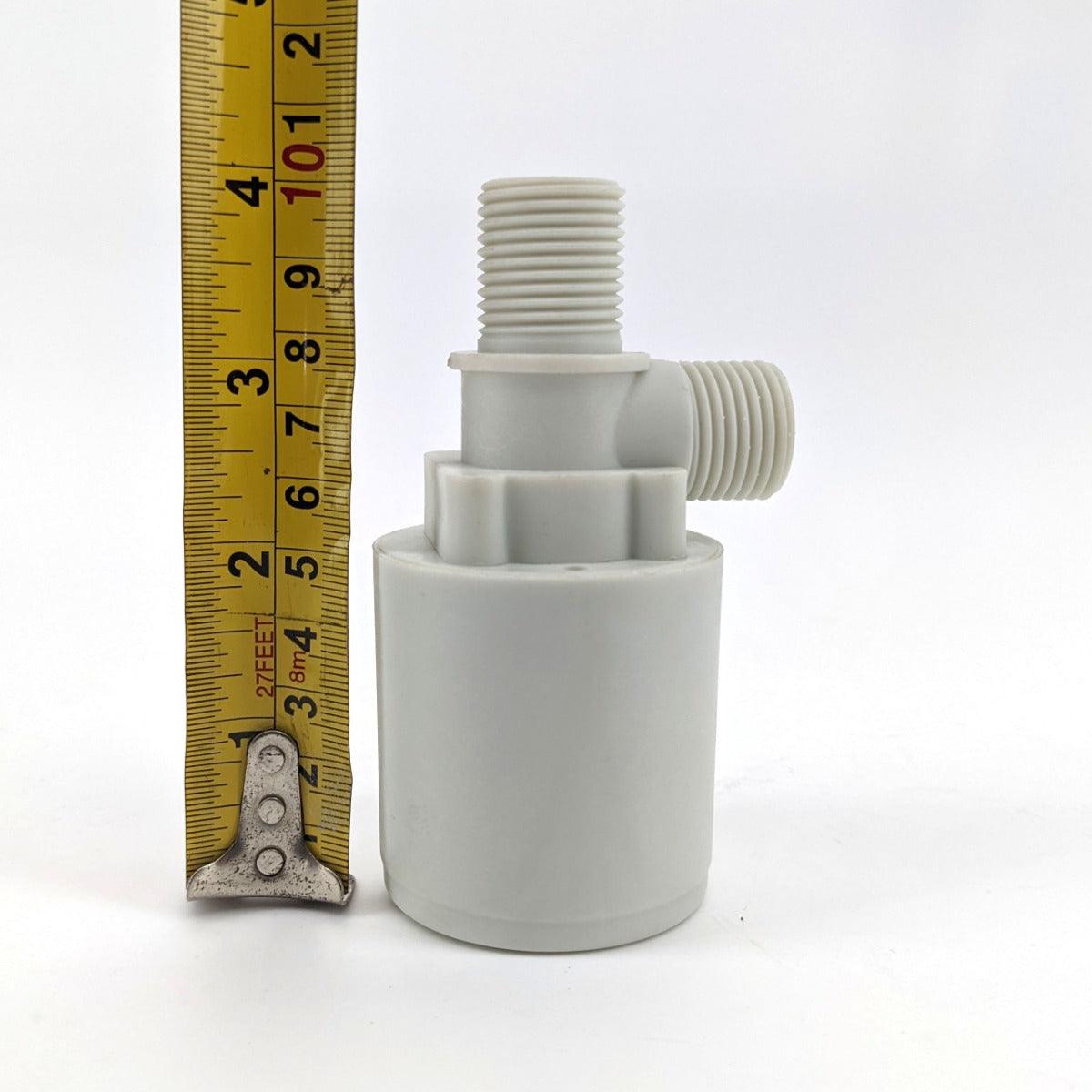

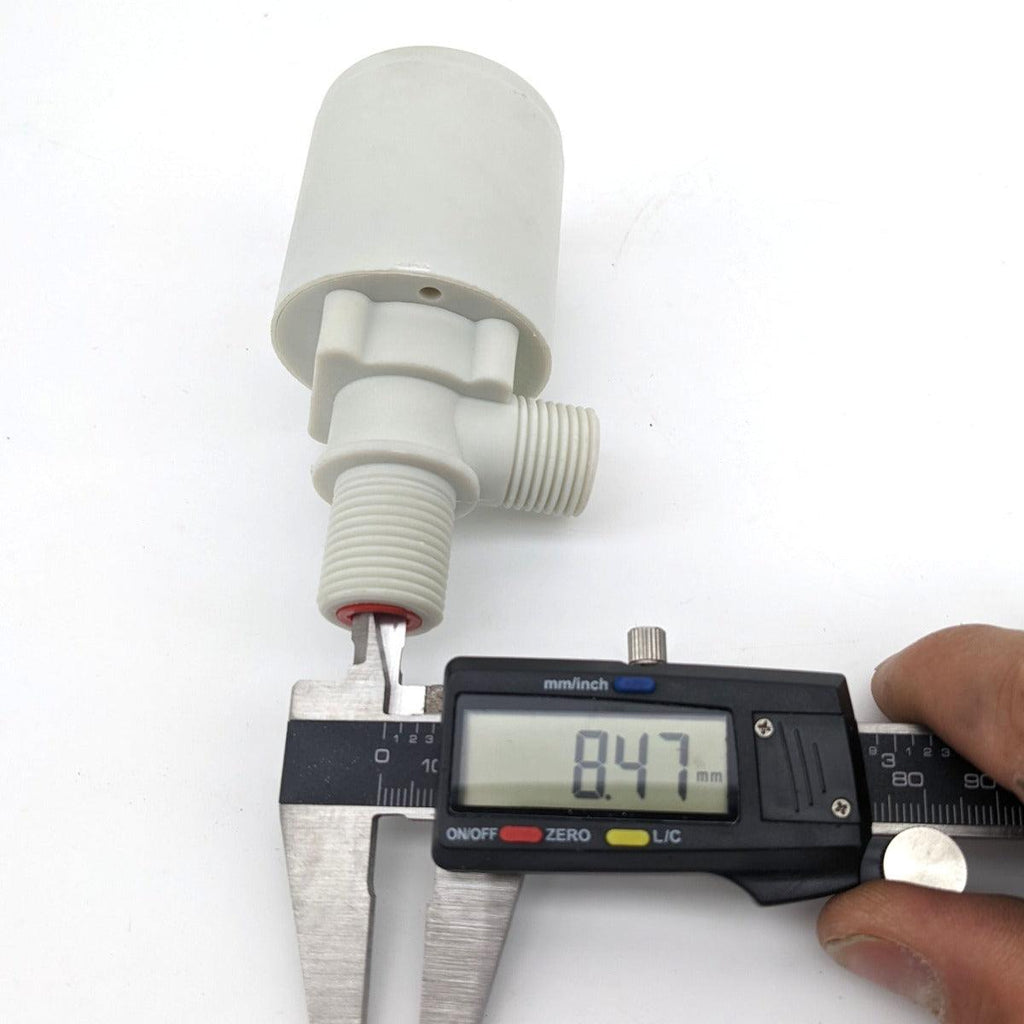

Size: 72x50x70mm

When the pool or tank water levels falls, the float will sink down and the valve will open allowing more water to run into the tank.

This valve must be mounted horizontally to work correctly. Water enters the top of the float valve where the red filter mesh is located and then flows out the side port.

Other recommended fittings:

KL11143 - PE Water Line - This can handle mains water pressure and is easy to connect and use with 1/4 Push in Fittings

KL26918 - Inline Regulator (This is if you want to reduce your mains water pressure)

KL13888 - This will fit onto most garden taps with male 3/4" threads

KL21944 - Tee piece that suits the fittings and tube above

KL14038 - This will screw directly onto the 1/2" threads on the float valve so you can connect your 1/4 PE tube directly.  It also comes with o-ring so no thread tape is required.

KL09461 - This garden hose fitting has 1/2" female thread so it will connect directly to the float valve and allow you to attach garden hose to the float.  No thread tape required as this comes with seal inside.
